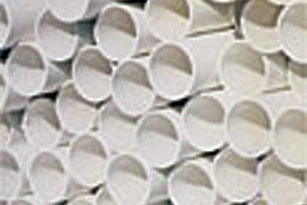

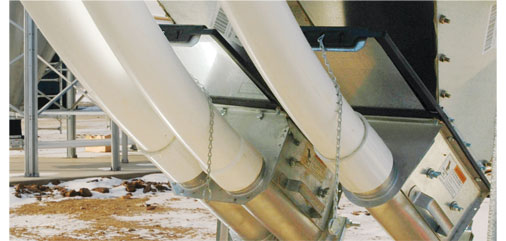

Nothing beats AP’s Flex-Flo™ feed delivery system in flexibility and adaptability. Using PVC tubing as the carrier of feed not only
provides flexibility in facility design, but reduces dust, provides protection against insect and rodent contamination, and reduces
stressful operation noise.

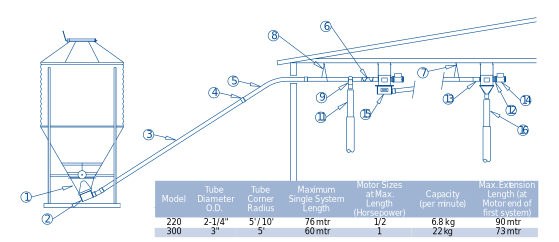

Flex-Flo™ Model Specifications
|Model 220||Model 300/300P||Model 350||Model HR||Model 500|
|15Lbs (6.8kg)||50Lbs (22.7kg)||100Lbs (45.4kg)||50Lbs (22.7kg)||220Lbs (99.8kg)|

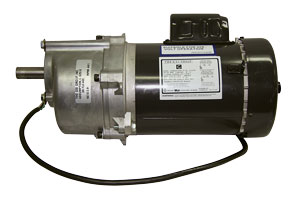

|Std. Power Unit RPM||358||358||358||358||358|
|Outside Dia. of Tube||2.2″ (56mm)||2.95″ (75mm)||3.5″ (89mm)||3.5″ (89mm)||5″ (127mm)|
|Corner Radius||5′ (1.5m) or 10′ (3m)||5′ (1.5m)||5′ (1.5m)||5′ (1.5m)||5′ (1.5m)|
|Max Length from BFT||250′ (76m)||200′ (61m)||150′ (46m)||150′ (46m)||***150′ (46m)|
|**Max Length Ext.||358||358||358||358||358|
|Std. Power Unit RPM||300′ (91m)||240′ (73m)||180′ (55m)||180′ (55m)||180′ (55m)|
|Recommended Motor HP at Max Length||1/2 HP||1 HP||1 HP||1 HP||1.5 HP|
|Max Moisture Rate||18%||18%||18%||27%||27%|
|Type of Feeds||Ground, Mash, Sm Particle||Ground, Mash, Sm Particle, Pellets-(300P)||Ground, Mash, Shelled Corn, Pellets||Shelled Corn, Lg Particle, Pellets||Shelled Corn, Lg Particle, Pellets|
|Max Particle Size||1/8″(D) x 1/2″(l)||1/8″(D) x 1/2″(l)||3/16″(D) x 1/2″(l)||3/8″(D) x 3/4″(l)||3/8″(D) x 1″(l)|
*Feed Delivery Rate calculated at standard 40 Lbs./cubic foot material (640 kg per cubic meter).

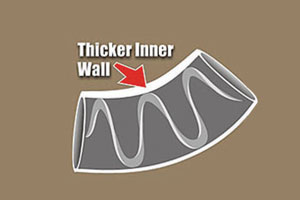

**Maximum length calculated with NO ELBOWS. Subtract 15′ from maximum length for each 45 degree elbow.
***For High Moisture Corn, reduce system length by 50%.
NOTE: When more feed storage or multiple rations require tandem tanks, subtract 50′ (15m) from the maximum system length.
