AP PERFORMER SERIES FANS
When it comes to designing a reliable ventilation system, performance, efficiency, and longevity all need to be maintained.
You will find the Performer Series ventilation fans have exceeded these goals with tremendous air output, extremely low power consumption
and heavy-duty construction.
24″ fibreglass Performer Series fan without cone
24″ fibreglass Performer Series fan with diffuser
|Fan||.0 SP||.05 SP||.10 SP||.05 SP|
|18″ D.D. w/cone||5090||4890||4720||11.0|
|24″ D.D. w/cone||7530||7120||6710||17.1|
|36″ D.D. w/cone||12290||11310||10360||19.6|
|36″ B.D. w/cone||12290||11280||10360||19.1|
|50″ B.D. w/cone||23894||23200||20577||23.1|
|54″ B-D w/cone||30044||28157||20.2|
The optional discharge cone for the Performer series fans is designed to increase airflow and efficiency by approximately 15%.
AP fan props are carefully balanced to provide smooth and efficient operation. Constructed of a strong and durable fibreglass blend,
these props will outlast most other blades of plastic, steel, or cast aluminium.
AP’s fan guard is made of heavy steel with a baked on powder coat finish.
Shutter retainers are standard on all 36″ and 50″ Performer Series fans. These retainers prevent damage to the shutter caused
by high winds.

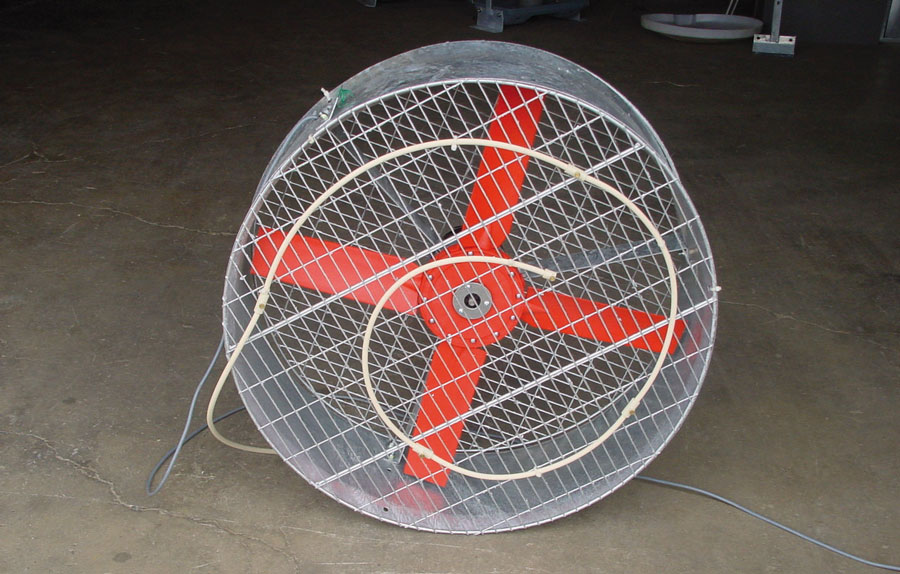

- Round casing galvanised with protection guards
- Fan impeller blades-hub all nylon with motor shaft nylon
- 5m power cord with plug
- Motor fully sealed against moisture
Air Spread & Control:
Four Blade – Distance from fan 65’ (20m) width 35’ (10.5m) Available in single and 3 phase
