Polygrate

122-00026 18” x 18” NURSERY

122-00031 HEAVY DUTY 40cm x 60cm FARROWING FLOORING

122-00010 GROWER (For pigs up to 100kg)

Structural Stability

Unique blend of plastic polymers and fibreglass creates a floor that:

  • Reduces surface wear
  • Provides strength of cast iron without the rust (corrosion proof-heat resistant)
  • 10 Year Conditional Warranty

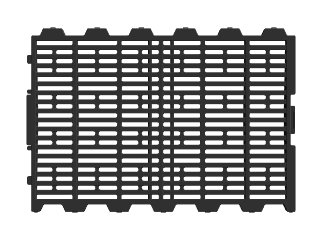

Farrowing 40cm x 60cm

Plastic Polygrate Flooring Farrowing

Plastic Polygrate Flooring Farrowing Animation

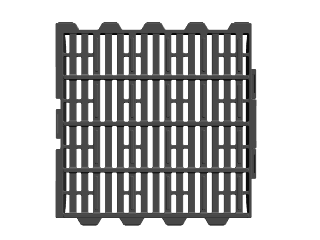

Nursery 18″ x 18″

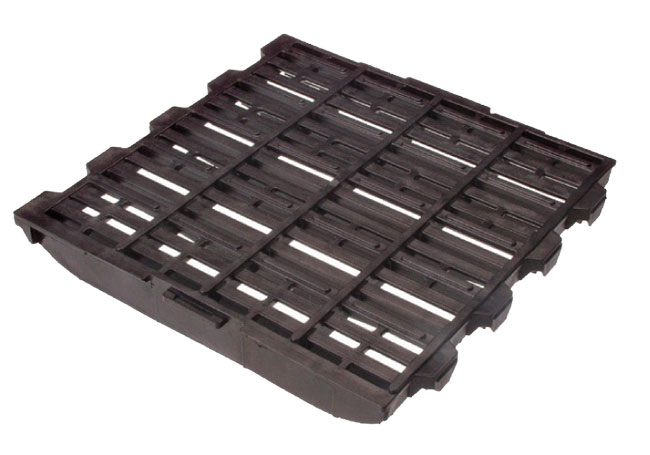

Plastic Polygrate Flooring Nursery

Plastic Polygrate Flooring Nursery Animation

Plastic Polygrate Assembly Animation


Support Beams

When the Polygrate flooring tiles are assembled over the support beams, the top surface of the flooring tiles lies above the top edge
of the support beams by the following distances:

  • Farrowing 40cm x 60cm19mm
  • Nursery 18” x 18”18mm
  • Grower 1’ x 2’6″51mm
122-00021 BOX I-BEAM

Support Beams Image
122-00027 MAXISPAN

Support Beams Image

122-00020 H.D. BOX I-BEAM

Support Beams Image
122-00016 H.D. I-BEAM

Support Beams Image

1122-00022 polybeam

Support Beams Image
122-00019 SUPER I-BEAM

Support Beams Image

SPAN
Type of Support Beam

Height
lighter than 45kg heavier than 45kg (incl. farrowing)
HD I – Beam

 Super I – Beam

 Box I – Beam

HD Box I – Beam

44mm

 57mm

116mm

135mm

3′

 4’2″

9′

10′

915mm

1270mm

2740mm

3050mm

2′

3’6″

 7′

8′

610mm

1070mm

2130mm

2440mm

Polybeam

 Maxispan
83mm

152mm
8′

12′
2440mm

3660mm
7′

10′
2130mm

3050mm

END CAPS FOR BEAMS

122-00028 MAXISPAN END CAPS

122-00015 H.D. BOX-I BEAM END CAPS

122-00023 POLYBEAM END CAPS

Application: the end caps are used to plug the open end of the beams.

Support Beams Image

POLY WALL BRACKET

122-00013

Application: to be fastened to the pit wall to span across the pit.

Support Beams Image

LEG BRACKET SET

122-00012

Polyrods are made of 100% pultruded fibreglass.

Application: To be used as an intermediate support where the beams extend beyond the recommended spanning distance. The 1″ polyrod
is adjustable to a maximum height of 16″ free standing.

Support Beams Image

SKID CAP

122-00014

Application: to be used when the beam is resting on a minimum 2″ recess ledge. Note: when using the skid cap, you will not require an end
cap.

Support Beams Image

END BRACKET

122-00011

Application: to be used when the beam can be fastened to the walkway

Support Beams Image

POLYRODS

122-00003 1″

122-00004 3/4″

Used for fastening farrowing crates and penning down onto the floor.

Support Beams Image
