Curtain Systems

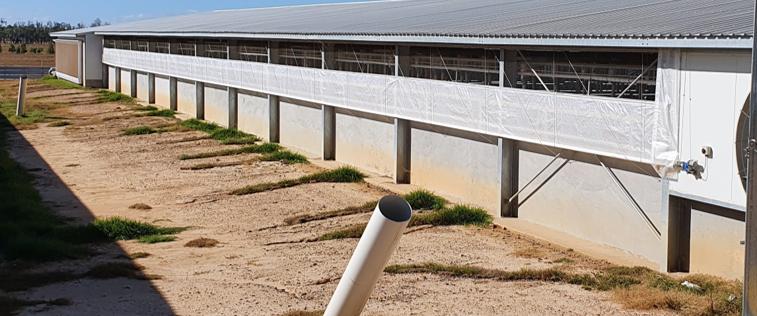

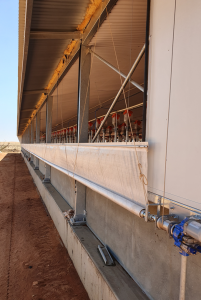

Rolling Curtain

Rolling Curtain is newly developed by Big Dutchman and mainly used for side curtains in Piggeries. The curtain can be fixed both on the
solid wall and the sandwich panel

  • Easy to install on new and existing buildings
  • System works up to lenghts of 85m
  • 24V motor
  • Curtain motor is fixed at the bottom and the curtain lowers from the top
  • Easy limit switch adjustment
  • Comes complete with transformer, pulleys and cable
  • Very cheap and simple system
  • Rolling up version available

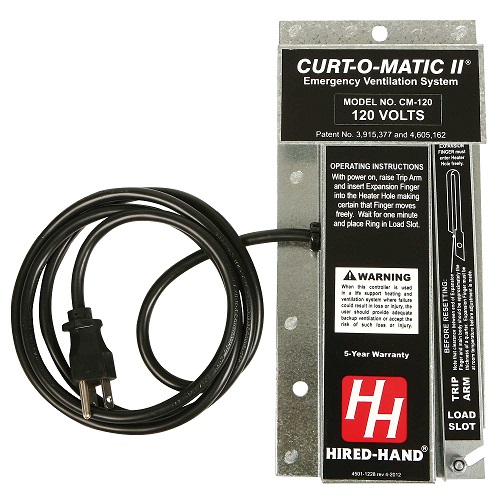

Curt-O-Matic II

Designed to automatically drop the curtains of your building if power failure occurs.

-5 min time delay

-Curtain chain kit

-Simple 3-wire hook up

-Easy Installation

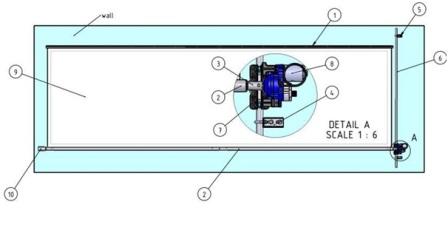

Curtain Hardware Diagram

Curtain Hardware

  1. Hand Winch
  2. 3/16″ Galvanised or SS Cable
  3. 3-1/2″ Thru-Wall or Needle Bearing Pulley
  4. 1/8″ Cable Clamp
  5. Screw Hook 1/4 x 3-3/4″ For Pulley
  6. 1-3/4″ Nylon Pulley
  7. PVC Coated Bird Netting
  8. 3/16″ Nylon Storm Rope
  9. Curtain Material
  10. 1/2″ Galvanised Conduit
  11. 15 lbs Curtain Weight
  12. Curtain Pocket

Downloads


Installation & User Manuals

PDFRolling Curtain Install Manual
